过滤器

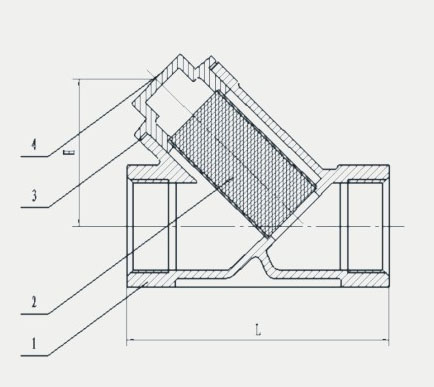

图示-(过滤器)图片
材质MATERIALS
| ITEM | DESIGNATION | MATERIAL | ||
| 1 | BODY | CF8/CF8M | ||
| 2 | SCREEN | 304 | ||
| 3 | GASKET | PTFE | ||
| 4 | BONNET | CF8/CF8M | ||
尺寸DIMENSIONS
| SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| L | 65 | 65 | 65 | 80 | 90 | 105 | 120 | 140 |
| H | 33 | 33 | 35 | 45 | 57 | 58 | 66 | 77 |
